eterio 110 RE1

    eterio 110 RE1  – basic server in the RACK 1U enclosure is equipped with the Intel Xeon E3-1200 v6 processor. The mainboard is equipped with a management mechanism compliant with IPMI 2.0, supports up to 64GB RAM – DDR4 ECC (in four memory slots). There are several models of 1U RACK chassis to choose from what will help to match the server to the customer needs.

    The server is based on Intel® Xeon®  E3-1200 v6 processor family, which have high performance and energy efficiency. All  processor models support  DDR4 2400 MHz memory.

    Unbuffered DDR4 ECC memory support . Dual channel memory support with a frequency of up to 2400 MHz gives the server a high bandwidth of data exchange between the processor and the memory because the memory controller  is built directly into the processor. The server supports up to 64 GB of RAM (in 4 memory slots).

    Server supports SATA drives (including SSD). It is cost effective way to have ample storage space for basic server applications. We recommend using SSDs for OS installation and if offered by them capacity will be enough also for application use. Building RAID1 sets will protect continous access to your data. Usage of SAS drives is possible with add-on RAID/HBA adapter.

    Basic version of 1U RACK chassis offers the possibility of installing 2 x 3.5″disks or 4 x 2.5″ disks. There are optional chassis with support for up to four SATA 3.5″ hot-swap drives or eight 2.5″ hot-swap drives (depending on the selected version of chassis). For expanding I/O capability there is option for one expansion card – PCI Express 3.0 x8.

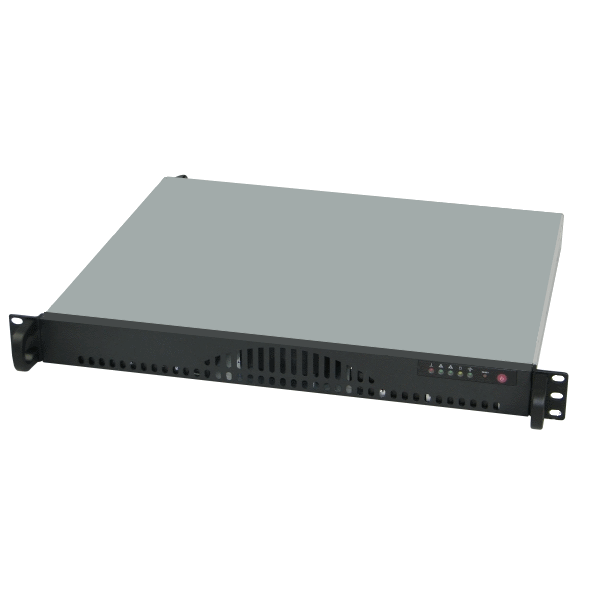

    Chassis RACK 1U, 2 x 3,5  or 4 x 2,5″

    1 x Low-profile PCI expansion slot
    1 x  blower fan 10 cm.
    Power Supply: 200W, single
    Dimensions (height x width x depth): 43 x 426 x 356 mm

    RACK 1U, 2 x 2,5   Hot-Swap

    1 x Low-profile PCI expansion slot
    3 x internal fan
    Power Supply: 200W, single
    Dimensions (height x width x depth): 43 x 437 x 287 mm

    RACK 1U, 4 x 3,5 Hot-Swap

    1 x Low-profile PCI expansion slot
    Bays: 4 x 3,5″ – Hot-Swap SATA
    1 x Slim 5,25″ (eg. DVD)
    1 x Slim 3,5″ (eg. optional front panel 2 x USB + COM)
    4 x internal fan
    Power Supply: 350W, single or 400W, redundant
    Dimensions (height x width x depth): 43 x 437 x 504 mm

    RACK 1U, 8 x 2,5″ Hot-Swap,

    1 x Low-profile PCI expansion slot
    Bays: 8 x 2,5″ – Hot-Swap SATA, SAS, SSD
    1 x Slim 5,25″ (eg. DVD)
    1 x Slim 3,5″ (eg. optional front panel 2 x USB + COM)
    4 x internal fan
    Power Supply: 330W, single or 400W, redundant
    Dimensions (height x width x depth): 43 x 437 x 508 mm
    Processor
    Intel® Quad-Core Xeon® seria E3-1200 v5

    Intel® Quad-Core Xeon® seria E3-1200 v6
    Memory slots

    4
    Max. CPU

    1
    Chipset

    Intel C232
    Memory

    DDR4 Unbuffered ECC
    Max supported memory

    64GB
    Available modules

    4 GB

    8 GB

    16 GB
    Memory protection

     ECC
    Integrated controllers SATA3 (6Gbps) – 6 ports
    Expansion slots 1 PCIe 3.0 x8 (in x16)
    I/O ports 2 x RJ-45 (Gigabit Ethernet)
    1 x LAN (RJ45) – dedicated for management
    1 x DB9 (serial port, RS232)

    11 x USB:
    USB 2.0
    • 2 x rear,
    • 4 x optional (on-board connectors)
    USB 3.0
    • 2 x rear,
    • 1 x internal type A port,
    • 2 x optional (on-board connector)

    1 x Video 15-pin (DB15)
    Management SuperDoctor 5
    IPMI 2.0
    Supermicro Power Manager (SPM)
    Supermicro Update Manager (SUM)
    Supported OS

    Red Hat Enterprise Linux Server 6.x
    Red Hat Enterprise Linux Server 7.x
    SUSE Linux Enterprise Server 12 (64-bit)
    Microsoft Windows Server 2012
    Microsoft Windows Server 2012 R2
    Microsoft Windows Server 2016
    Vmware ESXi 6.0, 6.5
    Xen Server
    Notice Linux  and VMware  were tested on SATA HDD – AHCI mode.
    (do not support chipset based  SATA RAID).
    Energy management

    YES
    Additional info Supported Red Hat versions: 6.7 (or above)  and 7.2 (or above)
    Integrated VGA

    BMC integrated Aspeed AST2400
    Integrated LAN

    2 x Gigabit Ethernet, 10/100/1000 Mbps (2 x Intel i210AT)
    Chassis

    RACK 1U
    Certified OS Microsoft Windows Server 2016
    TPM TPM 2.0 internal header (optional)
