eterio 116 RE1

    eterio 116 RE1 server is an advanced single-processor configuration designed for RACK cabinet (occupies 1U),. It is based on Intel Xeon Scalable processors. and offers a wide range of processors for a variety of applications. 6 slots for DDR4 memory modules are enough to support memory required by most of  application loads for which this servers was designed. Three horizontal expansion slots are available for standard PCI Express cards. The board also offers advanced network connectivity as standard – two 10 GbE ports with RJ-45 connectors and optionally you can use a version of the mainboard with a built-in HBA SAS/SATA controller.

    Processor

    Intel Xeon Scalable processors are new family of chips with diverse performance levels and functionality.  They have been divided into classes depending on the features : Bronze, Silver, Gold and Platinum. They have different number of cores, the base and Turbo frequency ,  the number of built-in units for floating-point calculations (AVX-512) or the number of UPI connections and even the capacity of supported RAM. They have built-in network interfaces (Ethernet) and support more PCIe lines than the previous generation. Among the multiple models, you can choose the one which perfectly suits your needs.

    Memory

    The server supports DDR4 Registered DIMM ECC (RDIMM), and Load Reduced DIMM (LRDIMM) with operating frequencies depending on the type of processor used. The 2400 MHz and 2666 MHz modules are available. In total up to 384GB RAM in 6 RDIMM modules or 768TB  RAM in LRDIMM modules is supported. The modules can work in max. 6-channel configurations – this is the optimal setup for best performance.

    Storage

    Server supports: SATA HDD/SSD – there is  build-in SATA controller on mainboard. For SAS support you need either add-in card: SAS/SATA HBA or SAS/SATA RAID adater available as  standard PCI Express adapter or special version of the mainboard with build-in SAS/SATA HBA. .  There is also possibility of supporting 2,5″ NVMe drives – within dedicated chassis with support for 2,5″ drives and  when add-on adapter is used.

    Chassis

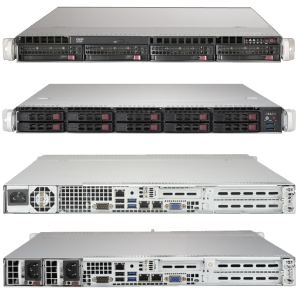

    1U RACK chassis with the possibility of installing up to four standard (3.5 “) SAS/SATA hot-swap disks or 10 pcs. of 2.5″ hot-swap drives (8x SAS/SATA and 2x SAS/SATA/NVMe). Additionally the” slim “optical drive bay is available in versions dedicated for 3.5 “disks. Chassis supports PCI Express expansion cards in two slots which accept full-height cards and one dedicated for “low-profile” cards. Standard for this chassis is a single 600W power supply, but you can choose a chassis version with redundant 500W (or 750W  in 2,5″ verssion) power supply.

    Specification

    Chassis RACK 1U, 4 x Hot-Swap
    Bays: 4 x 3,5″ – Hot-Swap SATA
    1 x Slim 5,25″ optical drive
    1 x Slim 3,5″ (eg. for optional module:  2 x USB + COM)
    5 x fan (optionally expandable to 6 pcs.)
    Power Supply: single 600W or 500W redundant
    Dimensions: (height x width x depth): 43 x 437 x 650 mm

    Rack 1U, 10 x Hot-Swap
    Bays: 10 x 2,5″ – Hot-Swap SAS/SATA/NVMe*
    5 x fan (optionally expandable to 6 pcs.)
    Power Supply: 750W redundant
    Dimensions: (height x width x depth):: 43 x 437 x 597 mm

    *- only 2x NVMe possible

    Processor

    Intel® Xeon® Scalable (Skylake EP)

    Memory slots

    6

    Max. CPU

    1

    Chipset

    Intel C622

    Memory

    DDR4 3DS LRDIMM,  DDR4 LRDIMM,  DDR4 Registered ECC.

    Max supported memory

    768 GB / 384 GB / 192 GB

    Available modules

    8 GB

    16 GB

    32 GB

    64 GB

    Memory protection

    Memory Mirroring

    Memory Sparing

    ECC

    Integrated controllers Intel C622,  SATA3 (6Gbps), 10 ports (6 x standard 7-pin including 2 x  powered for SATA DOM, 1 x miniSAS HD connector – for 4 ports).
    Expansion slots 2 x PCIe 3.0 x16

    1 x PCIe 3.0 x8 (low-profile)

    I/O ports 1 x VGA
    2 x LAN (RJ45)
    1 x LAN (RJ45) – dedicated for management
    2 x serial – 1x back, 1x optional (internal header)

    7 x USB 2.0 + 5 x USB 3.0:
    – 2 x USB 3.0 at the back
    – 2 x USB 3.0 (on front panel in 10-bay 2,5″ chassis and optional in 3,5″ chassis)
    – 1 x USB 3.0 internal, type A
    – 2 x USB 2.0 at the back
    – 5 x USB 2.0 (optional, internal header)

    Management

    Intel Node Manager 3.0
    IPMI 2.0
    SuperDoctor 5
    “Remote KVM” and “Media Redirection”

    Supported OS

    Red Hat Enterprise Linux Server 7.x

    SUSE Linux Enterprise Server 12 (64-bit)

    Microsoft Windows Server 2012

    Microsoft Windows Server 2012 R2

    Microsoft Windows Server 2016

    Notice Server model with 10-bay 2,5″ chassis supports NVMe  U.2 (2,5″) drives using retimer add-on card.
    Energy management

    YES

    Additional info Models with 10 x 2,5″ drive bays  do not support  internal optical drive – external USB optical drive is required.
    Integrated VGA

    BMC integrated Aspeed AST2500

    LAN

    2 x 10 Gigabit Ethernet, RJ-45

    Chassis

    RACK 1U

    Certified OS Microsoft Windows Server 2016
    TPM

    TPM 2.0 internal header (optional)
